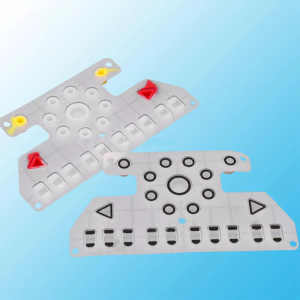

Personalized Keypad Buttons with Conductive Printing
Overview:
Conductive printed keypads, integral to silicone rubber keypads, significantly enhance electrical conductivity through the application of conductive ink. By bridging the gap between the keys and circuitry upon pressing, these keypads facilitate the transmission of electrical signals to execute user commands in electronic devices. The manufacturing process encompasses silicone keypad preparation, compression molding, precise conductive ink application, curing stages, and rigorous quality testing to ensure operational reliability. These keypads establish dependable electrical connections critical for seamless device functionality.
Features:
– High Conductivity:
– Ensures reliable electrical conductivity for seamless button operation.
– Customizable Design:
– Can be tailored to specific shapes, sizes, and designs to meet various requirements.
– Durable Construction:
– Made with robust materials for long-lasting performance and durability.
– Easy Integration:
– Designed for effortless incorporation into different devices.
– Precise Contact Resistance:
– Maintains precise control over contact resistance, optimizing performance in diverse applications.
Electrically Conductive Ink Printing Advantages for Keypads:
Enhanced Conductivity Features
– Versatile Conductive Zones:Achieve flexibility with diverse shapes like irregular or O-ring/rectangular areas for backlighting, meeting varied design requirements.
– Specialized Solutions:While black carbon pills are standard for most silicone keypads, specialized keypads with irregular conductive zones (e.g., laser-etched or silk-screen silicone rubber) optimize LED backlighting effects.
Improved Production Efficiency
– Cost Efficiency:Transfer conductive printing reduces production costs significantly compared to traditional methods. Unlike manual placement of black carbon pills, this technique coats multiple keypad contact zones simultaneously.
– Automation Advantage:Automated processes streamline production, enhancing efficiency and saving valuable time.
Challenges of Electrically Conductive Ink Printing for Keypads:
Contact Resistance Variance
– Higher Contact Resistance:Electrically conductive ink printing often exhibits higher contact resistance (approximately 150-200 OHMs) compared to carbon pill keypads (below 100 OHMs). Achieving precise resistance levels requires additional materials and improved printing processes.
Durability Concerns
– Ink Wear Over Time:Printing keypads may experience ink wear over extended use, impacting durability. To mitigate this, using high-quality ink and ensuring thorough drying during production are essential for prolonging the keypad’s lifespan.
