Overview:

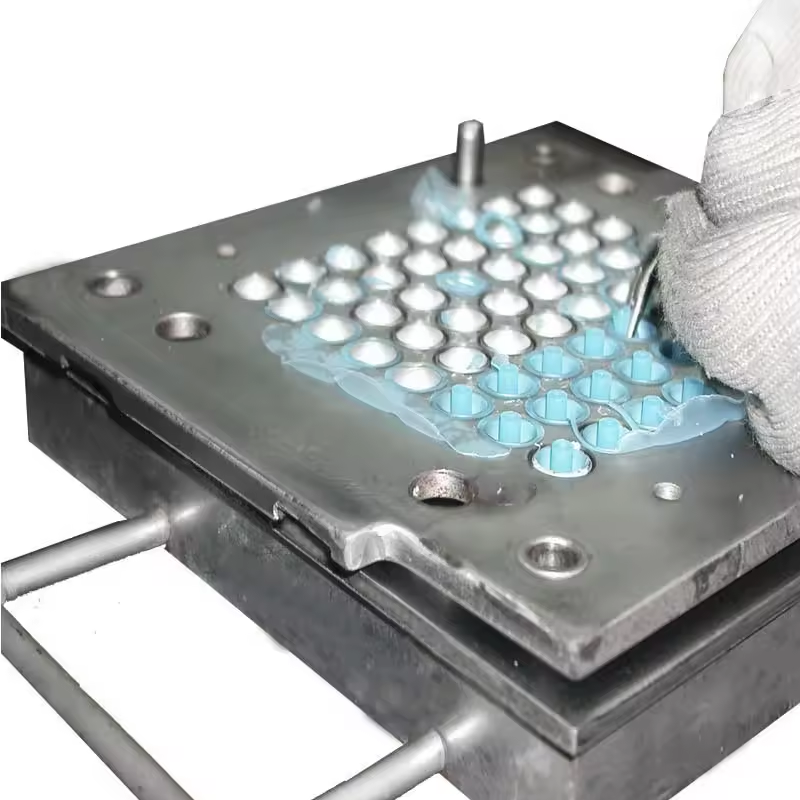

OEM silicone rubber compression molds for switch buttons and keyboards are precision-engineered tools crafted from high-grade, heat-resistant silicone rubber using advanced compression molding processes. Our factory specializes in custom OEM solutions and one-stop service, from rapid prototyping to full-scale production. Utilizing precision CNC machining and rigorous quality control, we deliver durable, dimensionally stable molds optimized for consistent performance and high-volume manufacturing. Ideal for tactile keyboard components, our cost-effective tooling solutions ensure superior accuracy, extended service life, and seamless integration with automated assembly systems. Trust our expertise in silicone rubber tooling for reliable, low-tolerance molds backed by 24/7 technical support and scalable production flexibility.
Features:
| Characteristic | Specification |
| Material | High-temperature resistant silicone rubber (e.g., LSR, HTV) |
| Prototype Lead Time | 5-7 days |
| Mass Production Lead Time | 2-3 weeks (order volume-dependent) |
| Sample Availability | Pre-production samples provided within 7 days (FOB terms available) |
| Mold Lifecycle | 50,000–100,000 cycles (material/application-dependent) |
| Hardness Range | Shore A 30–80 (customizable) |
| Tolerance | ±0.05mm (ISO 3302-1 compliant) |
| Surface Finish | Textured, polished, or custom finishes (Ra ≤0.2μm achievable) |
| Production Process | CNC machining + compression molding + post-curing QC |
| Certifications | ISO 9001:2015, RoHS compliant |
| Packaging | Anti-static/moisture-proof wrap; wooden crates for bulk shipments |
| MOQ | 1 set (custom designs accepted) |
| Additional Services | OEM support, DFM analysis, 24/7 technical consultation |
Tooling Surface Coatings:
- Nickel Plating: Nickel plating is applied to the tooling to enhance surface hardness and improve resistance to corrosion and wear. This coating ensures the tooling lasts longer and maintains precision throughout multiple production cycles, reducing the need for frequent maintenance.
- Chrome Plating: Chrome plating offers superior hardness and excellent wear resistance for tooling. This coating helps minimize friction, ensuring smooth and consistent mold performance, even under high-volume production, while also providing a high-quality, polished finish.
- Anti-Corrosion Coating: Anti-corrosion coatings are applied to protect the tooling from rust and degradation due to exposure to moisture and chemicals during the molding process. This ensures longevity and stable performance, especially in environments with fluctuating humidity or exposure to harsh materials.
- Teflon Coating: Teflon coatings provide a non-stick surface that reduces the friction between the silicone material and the mold. This results in easier mold release, cleaner finishes, and a more efficient molding process, while also preventing material buildup that could affect the precision of the tooling.
Quality Assurance:
The manufacturing process begins with design validation (DFM analysis via 3D CAD/CAM), followed by high-precision CNC machining of hardened steel or aluminum mold bases to ±0.05mm tolerances. Advanced compression molding employs heat-resistant LSR/HTV silicone rubber, cured under controlled temperature/pressure cycles for optimal density and dimensional stability. Post-processing includes EDM/texturing (Ra ≤0.2µm) and QC inspection using CMM, durometers, and tensile testers. Our facility is ISO 9001:2015 and RoHS-certified, equipped with automated hydraulic presses, spectral analyzers for material compliance, and aging test chambers for lifecycle validation. Rigorous batch testing ensures defect-free molds with 50k+ cycles, backed by full traceability and PPAP documentation for industrial-grade reliability.
Factory Show:
Our advanced manufacturing facility is equipped with cutting-edge technologies, including CNC machining, Mirror EDM, EDM, and Slow-Speed Wire Cutting (WC), enabling us to achieve the highest level of precision and accuracy in mold production. We operate a robust fleet of 15 rubber compression molding machines and 2 LSR injection molding machines, optimizing production efficiency and meeting large-scale manufacturing demands. To maintain our rigorous quality standards, we utilize state-of-the-art testing equipment such as 3D projectors, sealing testers, durometers, and elasticity measurement instruments, all managed by a dedicated quality control team. Our operations are certified to ISO 9001 and IATF 16949 standards, ensuring the reliability and consistency of our products. Additionally, we integrate automated systems, including AutoDryers, high-speed doming machines, and die-cutting equipment, to further enhance precision and production efficiency. By leveraging these advanced technologies, we guarantee that each product meets the highest standards of performance, quality, and functionality.
