Overview：

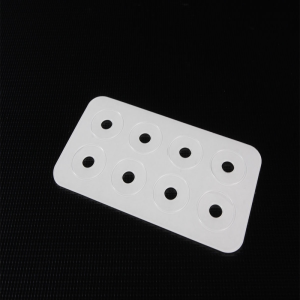

The fundamental operation of a carbon pill keyboard revolves around its unique method of conducting electricity through carbon pills. When you press down on the soft silicone surface of the keyboard, the surface compresses, causing the conductive pellet to make contact with the PCB. This contact establishes an electric current, which is essential for the keyboard’s functionality. Essentially, the carbon pellet acts like a miniature resistor within the circuit, with its resistance value affecting the keyboard’s sensitivity. Carbon pills are typically composed of a mix of silicone and carbon, which allows for flexible design possibilities. As a result, these pills can be shaped into various forms, including round, oval, or rectangular, depending on the design requirements. The adaptability of the carbon pill’s shape underscores its versatility in keyboard design.
Features Include:
| Detection Method | Correlation Type |
| Materials | Silicone Rubber |
| Environmental Friendly | SGS, RoHS |
| Surface Coating | PU Coating, Matte Smooth Coating, Epoxy Coating |
| Place of Origin | Xiamen, China |
| Color | Any color is available (as customer request) |
| Logo | Customized |
| Production Capacity | 50,000 PCS/Week |
| Contact Resistance | 10-200 Ohm |
| Legend | Silk Screen, Laser Etching |
| Conductive Way | Carbon Pills |
| Transport Package | Poly Bag, Carton Boxes |
How To Use Carbon Pills：
- Smooth Matte Carbon Pills: With a smooth and matte surface, these pills are typically used in applications requiring low friction and stability, such as precision switches or high-end electrical contact points. They help reduce wear and enhance reliability.
- Textured Carbon Pills: The surface texture with small grids increases friction and contact stability. These pills are suited for applications requiring higher friction or anti-slip properties, such as switches or buttons, providing better grip and tactile feedback.
- Low Resistance Conductive Graphite Pills: With a resistance of less than 10 Ohms, these pills offer excellent conductivity and are used in high-performance electronic devices and applications requiring low-resistance connections, such as high-frequency signal transmission and sensitive electronic component contacts.
- Common Resistance Carbon Contacts： With a resistance of less than 50 Ohms, these pills are suitable for most standard electrical contact applications, such as ordinary switches and low-power circuits. They provide adequate conductivity and stability but are not ideal for applications requiring very low resistance.
Factory Show：
(1)Mold-Making Facilities:
- CNC Machines
- Mirror EDM
- EDM (Electrical Discharge Machining)
- Slow-speed Wire Cut WC
（2）Production Lines:
- 15 Rubber Compressive Machines

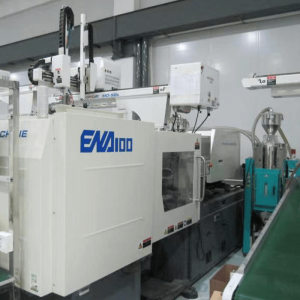

- 2 LSR Injection Machines
（3）Quality Control Equipment:
- 3D Projectors
- Sealing Testers
- Elasticity Measurement Tools
- Durometers
- QC Team
（4）Mechanical Equipment:
- AutoDryer Line

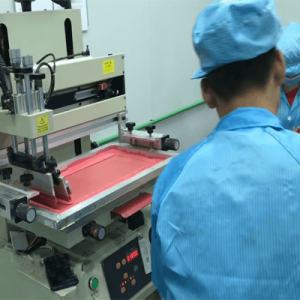

- Automatic Screen Printing Machines
- 3D Measuring Instruments
- Automatic High-speed Doming Machines
- Die-Cutting Machines (including Automatic Die-Cutting Machines)
- CNC Machines
Why Choose Us?
- Design and Development: Providing comprehensive OEM support from initial concept to final production, ensuring adherence to client specifications and industry standards.
- Quality Assurance: Implementing rigorous quality control processes to maintain consistency and reliability in OEM silicone keypad manufacturing.
- Scalability: Flexibility to accommodate varying production volumes while maintaining product quality and delivery timelines.
- Confidentiality: Upholding strict confidentiality agreements to protect client designs and intellectual property.
