Description:

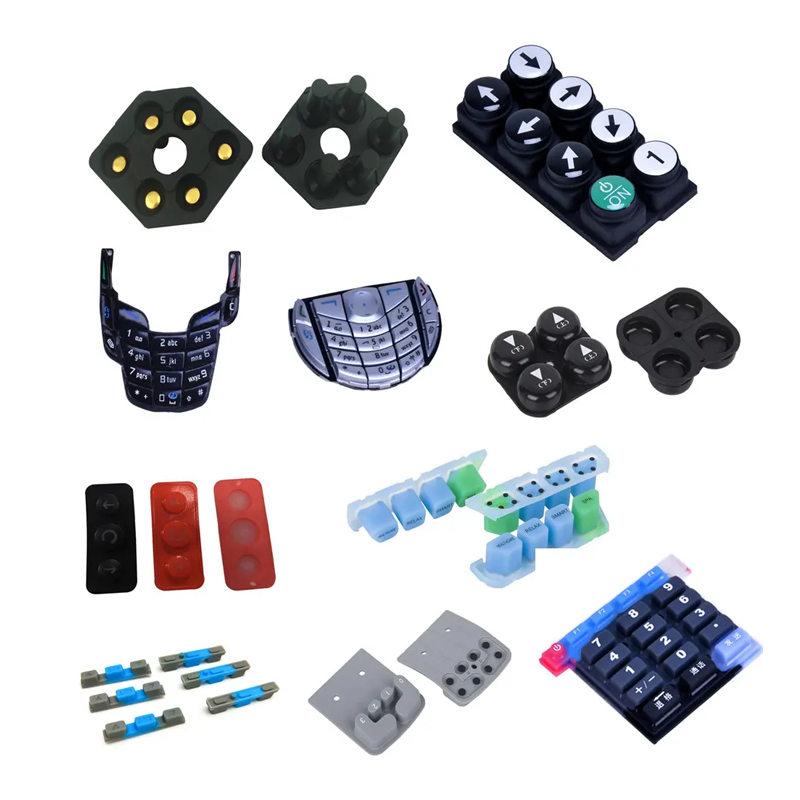

Our factory produces custom black carbon pill silicone rubber keypads that are meticulously designed for optimal performance. These keypads incorporate black carbon pills, enhancing conductivity and ensuring exceptional durability. Manufactured using advanced silicone compression molding techniques, each keypad is made from food-grade or medical-grade silicone, ensuring flexibility, reliability, and long-term resilience in demanding applications. The keypads are fully customizable to meet the unique requirements of various industries. We provide both OEM and custom solutions, delivering high-quality, durable products tailored to your specifications. Our facility is ISO 9001 certified, assuring you of our commitment to superior manufacturing practices and stringent quality control standards.
Characteristics:
- Place of Origin: Xiamen, China
- Brand Name: OEM
- Sample: Custom
- Material: Silicone
- Logo: Silk screen printing, laser etching
- Conductive Way: Black Carbon Pill / In Printing / Metal Pills
- Color: As required
- Size: Customized size accepted
- Feature: Durable
- Certification: ISO9001, ROHS, FDA
Production Process:
- Material Compounding
– Silicone base is blended with conductive carbon pills and additives (per ASTM D2000) using twin-roll mills to achieve the required material properties.
- Tooling Fabrication
– Precision molds are CNC-machined to a tolerance of ±0.005mm, with laser-etched legends to ensure accurate and durable key markings.
- Compression/Injection Molding
– The preforms are vulcanized at temperatures ranging from 160–180°C and under 15–20 MPa pressure to form the keypad layers, ensuring optimal flexibility and durability.
- Silkscreen Printing
– UV-resistant inks (Pantone-matched) are applied through automated screen printers with 200–325 mesh screens, followed by infrared (IR) curing for enhanced print durability.
- Post-Processing
– Flash is trimmed using lasers, and metal domes/PCB contacts are integrated with conductive adhesives (IPC-CC-830B compliant) for seamless functionality.
- Assembly & Testing
– Elastomer layers are mounted into housings using robotic pick-and-place systems, followed by 100% functional testing, including actuation force, travel distance, and IP67 sealing validation.
– Final quality assurance includes MIL-STD-883 vibration tests and RoHS-compliant XRF verification, with products packaged in ESD-safe vacuum-sealed packaging.
Other Surface Coating :
- Matte Finish
– Delivers a smooth, non-reflective surface, perfect for a refined and professional appearance.
– Ideal for applications where low-glare and a matte texture are required for functionality and aesthetics.
- Polyurethane (PU) Coating
– Offers exceptional resistance to abrasion, chemicals, and various environmental factors.
– Provides long-lasting protection while maintaining a sleek, premium look.
- Epoxy Coating
– Known for its superior adhesion properties, offering robust protection against wear and physical damage.
– Well-suited for applications in harsh environments where enhanced durability is essential.
- Laser-Engraved Silicone Coating
– Precision laser etching provides clean, sharp details, offering a high level of accuracy and visual appeal.
– Enhances the surface with intricate graphics, combining both functional and aesthetic benefits.
Factory Show:
Our state-of-the-art manufacturing facility is outfitted with cutting-edge technology, including CNC machining, Mirror EDM, EDM, and Slow-Speed Wire Cut (WC) machines, ensuring the utmost precision in mold production. Our highly efficient production line features 15 rubber compression molding machines and 2 LSR injection molding machines, enabling us to maximize both output and capacity.
To maintain our stringent quality standards, we employ advanced inspection equipment such as 3D projectors, sealing testers, durometers, and elasticity testers, all monitored by our experienced and certified quality control team. Our facility is ISO 9001 and IATF 16949 certified, ensuring the consistent delivery of high-quality, reliable products.
We also leverage automated systems—including AutoDryers, high-speed doming machines, and die-cutting machines—to streamline production workflows. This enhances both accuracy and operational efficiency, ensuring optimal performance throughout the entire manufacturing process.
