Detail:
A Metal Dome Rubber Keypad combines a silicone rubber keypad with metal dome switches underneath each key. The keypad is made from silicone rubber, beneath each key on the silicone rubber keypad, there is a metal dome switch. These dome switches are typically made from stainless steel or other metals and are designed to collapse when the key is pressed, the center point of the metal dome is concave and contacts the line on the PCB to form a loop, When the current pass, the membrane keypad work normally, making electrical contact to the user.
Features Include:
| Detection Method | Correlation Type |
| Materials | Silicone Rubber |
| Environmental Friendly | SGS, RoHS |
| Surface Coating | PU Coating, Matte Smooth Coating, Epoxy Coating |
| Place of Origin | Xiamen, China |
| Color | Any color is available (as customer request) |
| Logo | Customized |
| Production Capacity | 50,000 PCS/Week |
| Contact Resistance | 10-200 Ohm |
| Legend | Silk Screen, Laser Etching |
| Conductive Way | Conductive Printing, Carbon Pills, Metal Dome |
| Transport Package | Poly Bag, Carton Boxes |

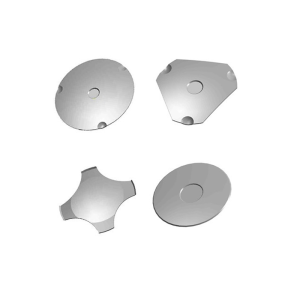

Different Metal Dome Shapes & Actuation:
(1) Round metal dome: The most common shape, offering balanced tactile feedback.

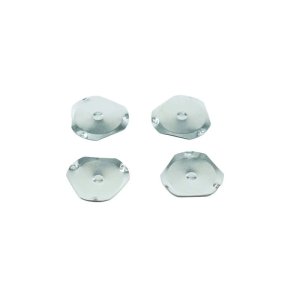

(2) Triangle metal dome: Provides a sharper tactile response.

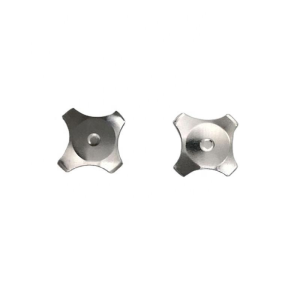

(3) Four-leg metal dome: Offers stability and durability.
(4) Cross metal dome: Ensures even actuation force in multiple directions.
(1) Light: 100-150 grams force (gf)
(2) Medium: 150-250 gf
(3) Heavy: 250-350 gf
About Metal Dome Silicone Rubber Keypad:
- (1) The metal dome array consists of separate metal domes adhered to a pressure-sensitive PET sheet, with each dome positioned at a specific location on the sheet.
- (2) The metal dome is designed to fit snugly on the keyboard, metal domes are easier to assemble on silicone rubber membrane keyboards
- (3) Metal domes last longer in silicone rubber keyboards, have been measured to last approximately five million uses.
Our Advantage:
1.Fully production equipment
- （1）Test or Five Plants: Mold-Making, Silicone Rubber Compressive, Plastic injection, LSR injection, and Assembly Plants Mold-Making
- （2）Equipment: CNC, Mirror EDM, EDM, Slow-speed Wire Cut Mic and other auxiliary equipment etc.
- （3）Production Equipment: 15 Sets Rubber Compressive Machines,8 Sets Haitian Plastic Injection Machines, 2 Sets LSR Injection Machines.
- （4）Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.
2.Production and Test strictly according to lso9001.
- (1) Silicone Keypad Alcohol Abrasion Test
- (2) Silicone Keyboard Material Tensile Force Test
