In today’s modern world, the terms “rubber dome switches” and “membrane keyboards” are often used interchangeably. Many consumers and manufacturers may not distinguish between the two, as both terms often refer to a rubber dome that sits over a membrane layer in keyboards. However, it’s important to understand that while these terms are related, they are not entirely identical in their design and functionality. This article will explore the differences between rubber dome and membrane switches, their applications, and the various designs used in rubber dome keypads, with a focus on how these switches are implemented in both consumer and industrial products.
What are Rubber Dome Keypads?
Rubber dome keypads are a type of switch mechanism commonly used in keyboards and other input devices. They are often made from highly elastic, durable rubber materials, such as silicone rubber, which provides a reliable tactile feel when pressed. The rubber dome is typically designed in a hemispherical or other raised geometric shape that ensures an even distribution of pressure when a key is pressed. The pressure causes the dome to collapse and complete an electrical circuit, sending a signal to the device.
The distinct tactile response of a rubber dome is what sets it apart from other types of switches. It provides a soft, responsive feel with a noticeable tactile bump as the key is pressed down. This can help to improve typing accuracy and speed.
At Rockeypad, we specialize in providing high-quality rubber dome keypads, designed to meet the unique requirements of a wide range of industries. Whether you are developing a consumer product, a medical device, or an industrial keypad, we can offer custom solutions to fit your needs.
Membrane Keypads vs. Rubber Dome Keypads

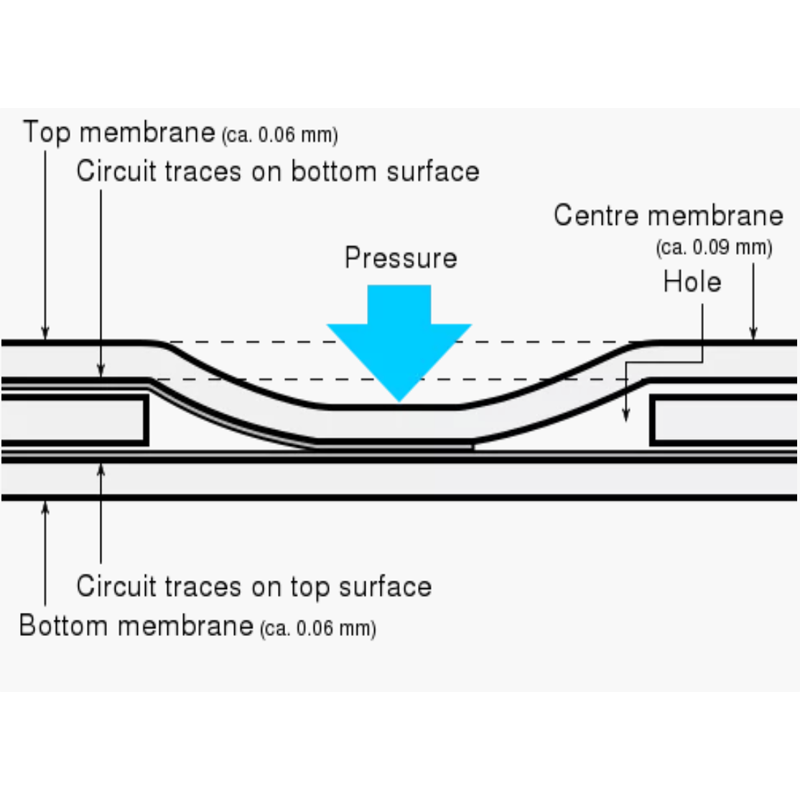

While membrane keypads and rubber dome keypads may seem similar, they are quite different in their construction and functionality. Membrane keypads, also known as membrane switches, typically use one to three thin sheets of flexible plastic that form the electrical contacts necessary for the switch to operate. These plastic layers are often printed with conductive ink and work by allowing electrical contact when the user presses down on a key.

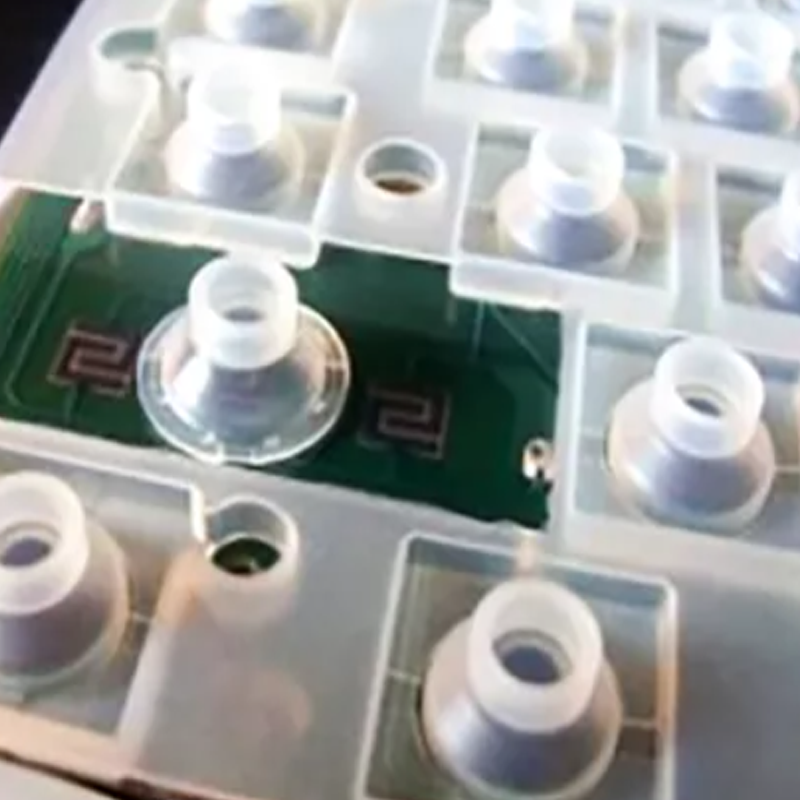

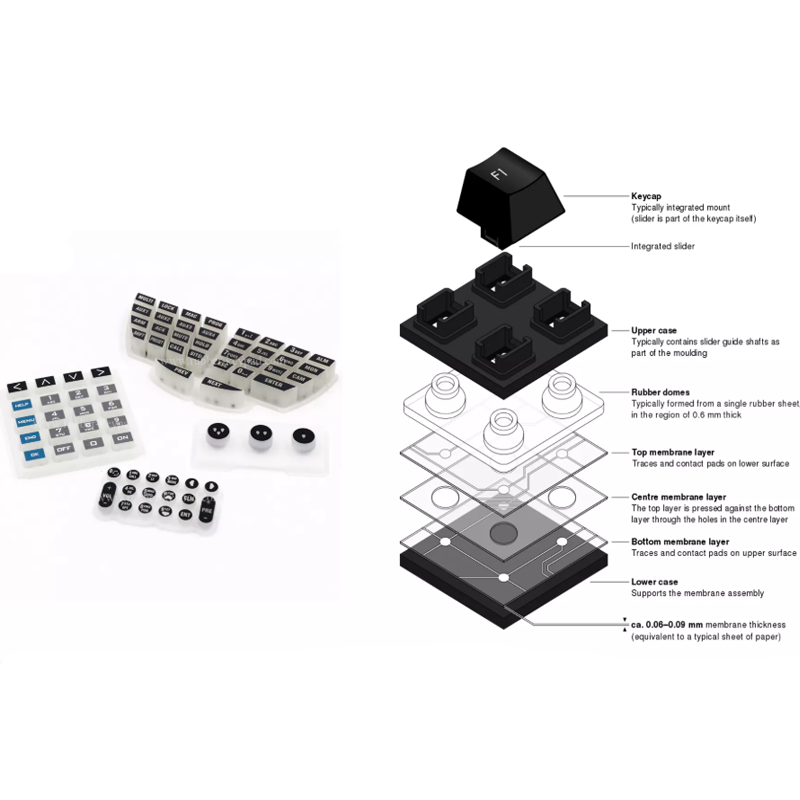

Rubber dome keypads, on the other hand, involve a rubberized dome shape that rests on the membrane switch. When a user presses down on the key, the rubber dome compresses, providing tactile feedback while simultaneously completing the circuit on the membrane layer underneath. This combination of rubber and membrane creates a distinct feel and response when typing, which many users prefer for its reliability and comfort.
It’s important to note that although rubber dome keypads often include a membrane layer as part of their construction, the rubber dome itself is the key element in delivering the tactile response that users feel when pressing a key.
The Design and Benefits of Silicone Rubber Dome Keypads
Silicone rubber domes are a popular choice for manufacturers due to their unique properties, which include excellent durability, high elasticity, and resistance to wear and tear. Silicone is a highly flexible material that can withstand repeated use without degrading, making it an ideal choice for keypads that will see frequent or heavy usage.
In addition, silicone rubber domes are highly abrasion-resistant and can withstand a wide range of temperatures, ensuring that the keys retain their tactile feel over the long term. Liquid silicone rubber (LSR), in particular, is often used to manufacture these domes because it offers superior performance and extends the lifespan of the switch mechanism.
At Rockeypad, we use high-quality silicone materials to produce rubber dome keypads that are designed for long-lasting performance. Whether you need a simple, functional keypad for everyday consumer electronics or a specialized solution for medical or industrial applications, we can provide the right materials and manufacturing processes to meet your needs.
Types of Rubber Dome Designs
Rubber dome keypads come in various shapes and configurations to suit different applications. Below are the most common types of rubber dome designs:

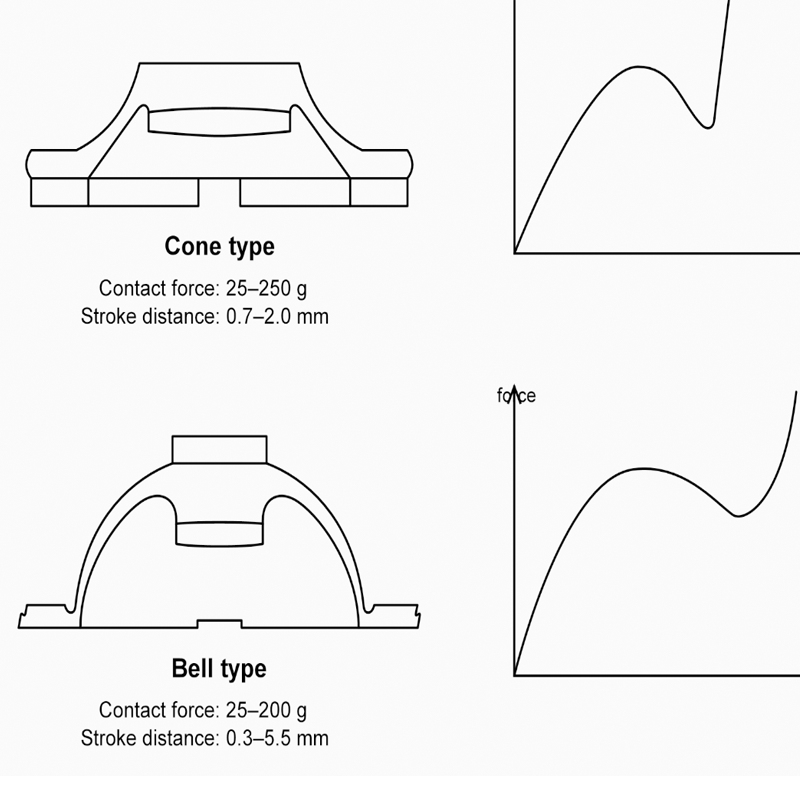

- Cone Type Rubber Dome
This type of rubber dome is designed in a cone shape, which creates a soft contact point when pressed. The cone type rubber dome is typically used in game console buttons and other applications where a responsive, smooth feel is required. The conical shape ensures that pressure is evenly distributed across the surface of the dome, providing a consistent tactile experience. - Bell Type Rubber Dome
The bell type rubber dome is designed with a wider base that curves inwards, resembling the shape of a bell. This design allows for a slightly softer, more comfortable feel during key presses. Bell type domes are often used in laptop keyboards, as their design allows for a slim profile without sacrificing functionality. The wider base helps to evenly distribute pressure, making this type of rubber dome a popular choice in portable devices. - Flat Type Rubber Dome
Flat type rubber domes are relatively flat in design and are often found in membrane keyboards. This low-profile design provides a minimal key travel distance, making it ideal for applications where space is limited or a compact keyboard is required. Many modern laptop keyboards use flat type rubber domes to achieve a slim, sleek design while maintaining reliable key functionality.
Each type of rubber dome offers unique benefits depending on the design requirements of the device. At Rockeypad, we offer a wide range of rubber dome configurations to meet the needs of various industries, from consumer electronics to medical devices and industrial applications.
Rubber Dome and Silicone Domes in Manufacturing
When selecting a rubber dome keypad for your device, it’s crucial to consider factors such as durability, feel, size, and required functionality. Silicone rubber domes, in particular, are well-suited for applications that demand high levels of reliability and performance over time. They are resistant to wear and tear, heat, and chemicals, making them ideal for use in harsh environments.
At Rockeypad, we specialize in the design and manufacturing of custom rubber dome keypads that can be tailored to your specifications. Whether you are developing a new product or need a replacement keypad for an existing device, we are here to help. Our team of experts can guide you through the selection process, ensuring that you choose the right rubber dome design for your specific needs.
Conclusion
Rubber dome keypads, especially those made from silicone rubber, offer a versatile and reliable solution for a wide range of applications. From game consoles to medical devices and consumer electronics, the tactile feedback, durability, and cost-effectiveness of rubber dome switches make them an excellent choice for many manufacturers. At Rockeypad, we understand the importance of selecting the right materials and designs for your product, and we are committed to providing high-quality rubber dome keypads that meet the highest standards of performance.
If you’re looking for more information or have questions about rubber dome keypads, feel free to contact us at Rockeypad. Our team is ready to assist you in selecting the perfect solution for your product’s needs. Reach out today and let us help you bring your designs to life with our custom keypads.
