When designing silicone rubber keypads or keyboards for your device, one of the most crucial aspects to consider is how to quickly obtain accurate prototypes for testing and validation. Whether you’re working on a consumer electronics device, automotive keypad, or industrial control panel, getting a functional prototype is essential to ensure your design meets both aesthetic and functional requirements.
At Rockeypad, we offer several rapid prototyping solutions to help you obtain high-quality silicone rubber keyboard prototypes in the shortest possible time. Below, we’ll explore the most common prototyping methods—each offering unique benefits, limitations, and applications. Let’s dive into the options available and determine the best approach for your specific needs.
-

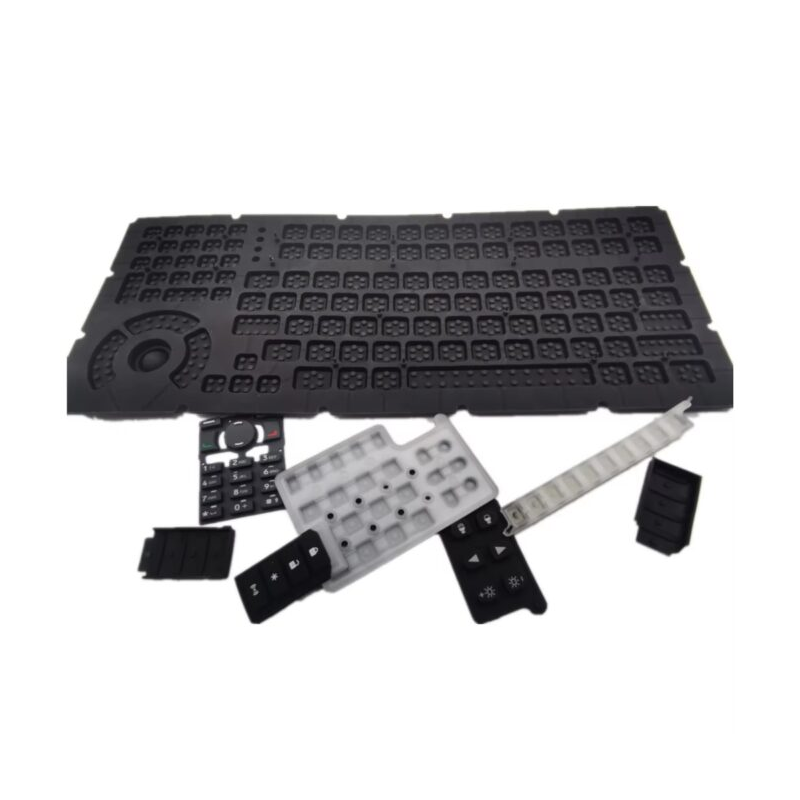

Low-Cavity Molded Rubber Prototyping
Low-cavity molded rubber prototyping is one of the fastest and most cost-effective ways to produce silicone rubber keyboard samples. This method uses a simplified mold with fewer cavities (typically 1 to 4) compared to the full production mold, making it ideal for small runs and prototype testing.
Process Overview
In this approach, the silicone rubber used for the prototype is identical to the material that will be used for mass production. The mold typically includes only a small number of cavities (1-2 or 4), which limits the number of units that can be produced in one cycle—usually up to 100 shots. This method is cost-effective due to the simplicity of the mold and the relatively fast setup time, with typical lead times of 7 to 10 days.
While the low-cavity mold is suitable for producing prototype samples to validate design geometry and fit, it’s important to note that this mold is generally not suitable for long-term or large-volume production. Once the initial batch of prototypes is made, the mold may require maintenance or adjustments before further use.
Benefits
– Faster turnaround: Prototypes are typically ready in 7-10 days.
– Cost-effective: Lower mold costs compared to full-scale production molds.
– Material consistency: Prototypes are made from the same material as the final product, ensuring accurate testing of tactile and physical properties.
However, the low-cavity mold may not provide the same durability or long-term viability as mass production molds, so it’s best used for initial testing, design validation, and small batches.
-
RTV Molding for Rapid Prototyping

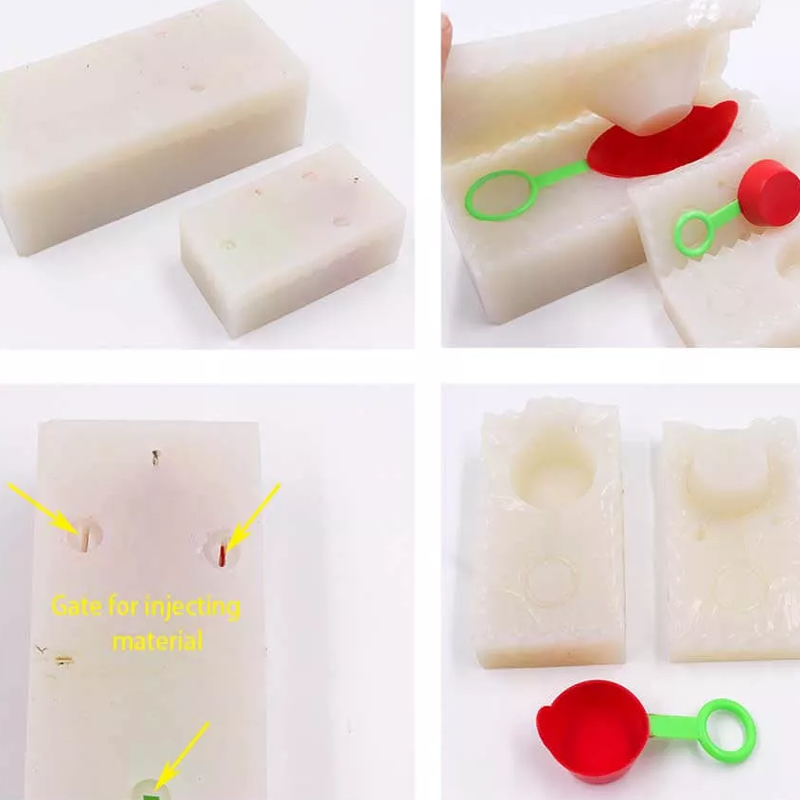

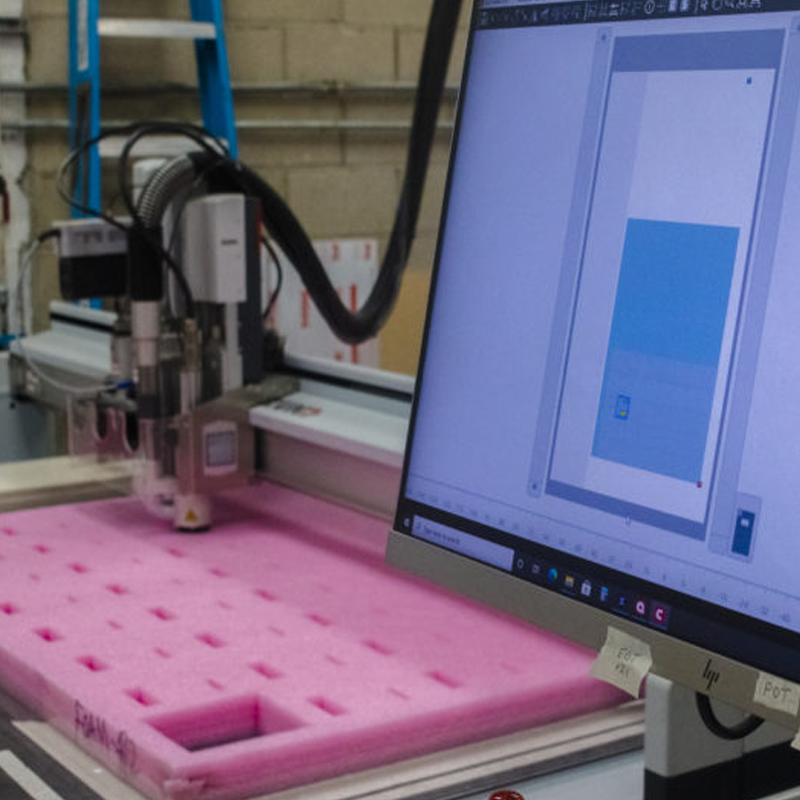

Room Temperature Vulcanization (RTV) molding is a widely used method for creating prototypes of silicone rubber keypads and keyboards. This process involves creating a pattern of the desired part, which can be machined from wood, metal, or another suitable material. RTV silicone is then mixed with a curing agent and poured over the pattern to create the mold. The curing process typically takes 24 hours, after which the mold is ready for use.
Process Overview
RTV molds are suitable for low-volume production runs, typically up to 100 parts. The mold itself is flexible and durable enough to produce functional prototypes, but it’s not as durable or precise as a metal production mold. RTV molding can be used for soft elastomeric materials such as silicone rubber, making it ideal for products like keypads and keyboards.
While RTV molding provides good flexibility and ease of use for prototyping, it’s important to keep in mind that the resulting parts may not perfectly replicate the final production quality in terms of surface finish and durability. Additionally, RTV molds are not typically used for mass production due to their limited lifespan.
Benefits
– Quick lead time: Parts can be produced quickly, typically within 24 to 48 hours for curing.
– Good flexibility: Suitable for elastomeric materials like silicone rubber.
– Low cost: The process is cost-effective, especially for low-volume runs.
However, RTV molds are limited in terms of longevity and may require replacement after producing a few dozen prototypes. They also lack the precision of metal molds, so they’re most appropriate for validating designs, material properties, and basic functionality.
-
3D Printing for Rapid Prototyping

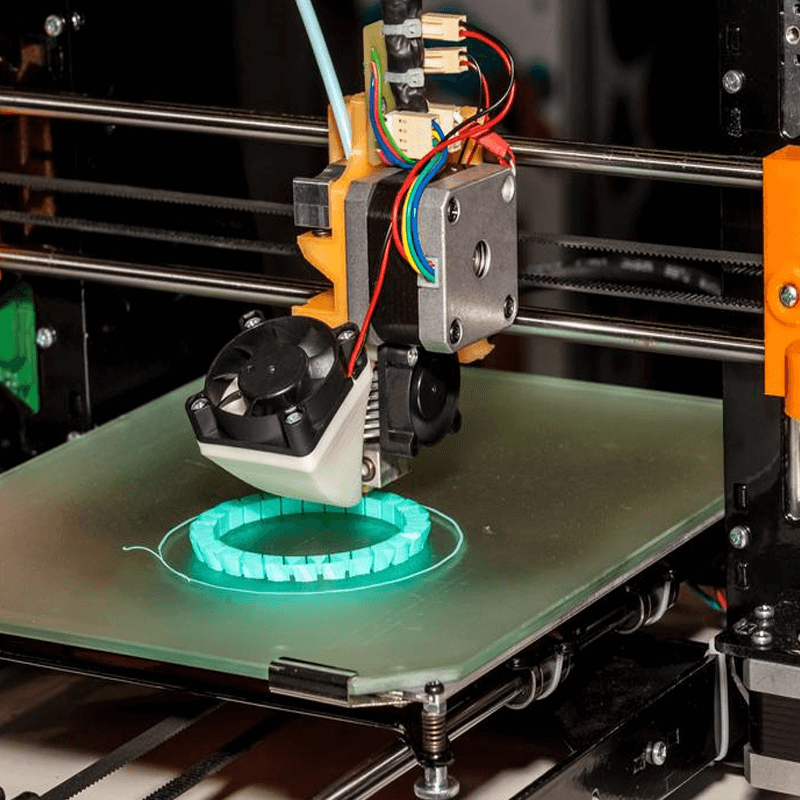

3D printing, also known as additive manufacturing, is an increasingly popular method for rapid prototyping. This technique involves building up layers of material based on a CAD file, which can create prototypes with complex geometries quickly. Although 3D printing is more commonly associated with plastic parts, there are options available for printing rubber-like materials, although these materials do not exactly match the properties of silicone rubber.
Process Overview

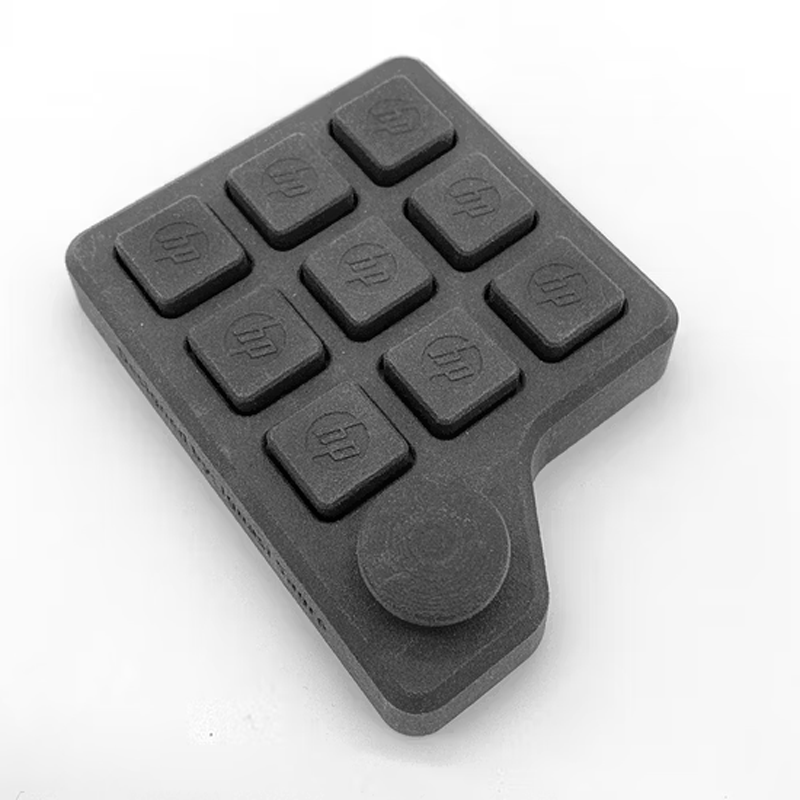

To produce a silicone rubber keyboard prototype, designers can create a 3D model of the keyboard, which is then printed using an additive manufacturing process. Materials used in 3D printing may include photopolymer resins, which have rubber-like properties but are not true silicone rubber. While 3D printing can produce intricate shapes and designs quickly, the resulting parts are typically not as durable or flexible as their silicone counterparts.
It’s important to note that 3D printing is more suitable for plastic or hard material prototypes. For true silicone rubber applications, 3D printing can be used to create functional mockups, but the parts won’t possess the same tactile properties or flexibility as silicone rubber.
Benefits
– Speed: 3D printing can produce prototypes in a matter of hours.
– Complex geometries: Allows for the creation of parts with intricate designs and shapes that may be difficult to produce using traditional molding methods.
– No tooling required: Eliminates the need for mold creation, which saves time and cost.
However, the main limitations of 3D printing for silicone rubber keypads and keyboards include the inability to replicate the exact material properties of silicone rubber, such as flexibility and tactile feel. These printed prototypes are often used for design validation and form testing but not for functional testing or low-quantity production.
-
Selecting the Right Prototyping Method for Your Silicone Keyboard
While all of the aforementioned methods can be used to create silicone rubber keyboard prototypes, the best choice depends on your specific needs. Here’s a breakdown of when to use each method:
– Low-Cavity Molded Rubber Prototyping: Best for creating prototypes that require accurate material properties, tactile feel, and geometry validation. Suitable for small-volume testing before moving to full-scale production.
– RTV Molding: Ideal for low-volume production runs (up to 100 parts) where quick turnaround and flexibility are important. Good for evaluating design and material properties in elastomeric applications.
– 3D Printing: Most useful for creating quick design iterations or functional mockups. While not suitable for silicone rubber itself, 3D printing is a great way to quickly validate shapes and ergonomics, especially when silicone is not required.
-
Limitations of Prototyping Methods
Each rapid prototyping method has its limitations. For instance, RTV molds and 3D printing provide excellent solutions for testing design and form but may not accurately represent the final production material properties. Prototypes produced through these methods are not suitable for low-quantity production or durability testing. If you require a true representation of the final product’s material properties, using a metal mold for actual production or mass production samples is recommended.
-
